#include <bit_stream.hpp>

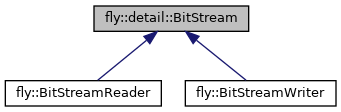

Inheritance diagram for fly::detail::BitStream:

Public Member Functions
virtual	~BitStream ()

Protected Member Functions
	BitStream (std::streambuf *stream_buffer, byte_type starting_position) noexcept

template<detail::BitStreamInteger DataType>
DataType	bit_mask (const DataType bits)

Protected Attributes
std::streambuf *	m_stream_buffer

buffer_type	m_buffer {0}

byte_type	m_position {0}

Detailed Description

Base class for writing to and reading from a binary stream. The first byte of the binary stream is reserved as a header for internal use.

The BitStream implementations allow reading and writing content bit-by-bit. Of course, files cannot contain partial bytes. If a BitStream is closed with a partial byte remaining to be written, that byte is zero-filled, and the number of extra bits written is encoded into the header.

The format of the header byte is then:

|    5 bits    |           3 bits           |
---------------------------------------------
| Magic number | Number of zero-filled bits |

Each BitStream implementation essentially serves as a wrapper around an already existing std::istream or std::ostream. It is expected that the pre-existing stream outlive the wrapper BitStream instance.

Author: Timothy Flynn (trfly.nosp@m.nn89.nosp@m.@pm.m.nosp@m.e)

Version: July 7, 2019

Constructor & Destructor Documentation

◆ ~BitStream()

fly::detail::BitStream::~BitStream ( )

virtualdefault

Destructor.

◆ BitStream()

fly::detail::BitStream::BitStream	(	std::streambuf *	stream_buffer,
		byte_type	starting_position
	)

protectednoexcept

Protected constructor to prevent instantiating this class directly.

Parameters

stream_buffer	Pointer to the stream's underlying stream buffer.
starting_position	Initial cursor position.

Member Function Documentation

◆ bit_mask()

template<detail::BitStreamInteger DataType>

DataType fly::detail::BitStream::bit_mask ( const DataType bits )

inlineprotected

Create a bit-mask with the least-significant bits set. The size of the mask is determined by the template DataType parameter.

Template Parameters

DataType The data type storing the number of bits to set.

Parameters

starting_position The number of bits to set.

Returns: The created mask.

The documentation for this class was generated from the following files:

fly/types/bit_stream/detail/bit_stream.hpp
fly/types/bit_stream/detail/bit_stream.cpp
